Lukas Re-railing & Train Derailment Recovery
Complete hydraulic systems for re-railing derailed rail vehicles — from trams and metro cars to heavy mainline locomotives. Authorized Lukas dealer serving Egypt, Middle East and Africa.
Re-railing Frames & Jack Systems
Complete Re-railing Solutions
Hydraulic re-railing frames that lift and guide a derailed bogie or axle back onto the track without crane equipment. Suitable for all standard gauge track.
Light Frame
Re-railing Frame — Light Series
For trams, light rail, metro and passenger coaches — up to 30 T axle load.
- Max. axle load: 30 T
- Gauge: 1435 mm (standard) / adaptable
- Hydraulic lift: 300 mm stroke
- Two-person deployment
Heavy Frame
Re-railing Frame — Heavy Series
For mainline locomotives, freight wagons and heavy rail — axle loads up to 30+ T.
- Max. axle load: 30+ T per frame pair
- Adjustable gauge adapter
- Hydraulic synchronisation available
- Modular — frames can be combined
Track Jack
Hydraulic Track Jack
Heavy-duty hydraulic jack positioned under rail vehicle chassis for controlled vertical lift.
- Lifting capacity: 30–75 T
- Stroke: up to 300 mm
- Low-profile nose for tight clearances
- Safety lock at each stroke position
Track Clamp
Rail Track Clamp
Bolted rail clamp anchoring the re-railing frame to the rail head — prevents lateral displacement during lifting.
- Compatible: UIC 54 / UIC 60 / Vignol rail
- Single-spanner installation
- Rated for frame uplift loads
- Pairs supplied as standard

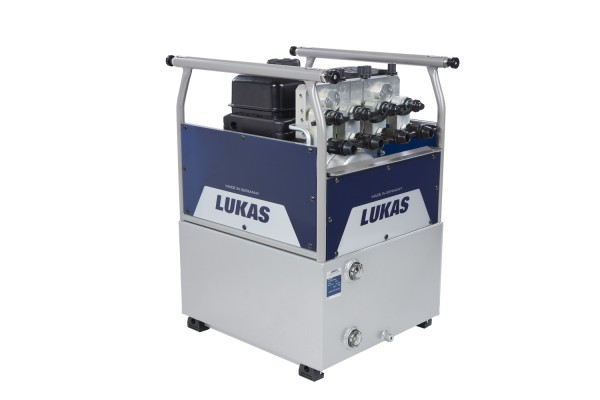

Power Unit
Hydraulic Power Unit — Re-railing
Petrol or electric hydraulic power unit supplying up to 4 simultaneous tool circuits for re-railing operations.
- Output pressure: 700 bar
- Up to 4 simultaneous circuits
- Petrol or 230 V / battery options
- Compatible with full Lukas E4 tool range
Complete System
Complete Re-railing Kit
Full re-railing system for one derailed bogie: frames, clamps, jacks, power unit, hoses and carry cases.
- 2× re-railing frames
- 4× track clamps
- 1× hydraulic power unit
- Hydraulic hose set (10 m) + transport trolley
Lifting & Recovery Aids
Spreaders & Rams for Derailment Sites
Hydraulic spreaders and rams used alongside re-railing frames to separate vehicles, clear debris and provide supplementary lift at derailment sites.
Spreader
SP 777 Spreader
Heavy-duty spreader used to separate overlapping bogies and move derailed vehicles laterally.
- Spreading force: 77 kN
- Max. opening: 770 mm
- Closing force: 27 kN
- Weight: approx. 18 kg
Combination Ram
CR 522 Combination Ram
Spreader-ram combination — acts as spreader for separation and as pushing ram for vehicle repositioning.
- Pushing force: 52.5 kN
- Spreading force: 52.5 kN
- Ram stroke: 220 mm
- Spreader opening: 220 mm
Extension Ram
R 521 Extension Ram
High-force single-acting ram for pushing derailed vehicles back towards track position.
- Pushing force: 154 kN
- Stroke: 210 mm
- Extended length: 680 mm
- Extension tubes available
Applications
Where Lukas Rerailing Equipment Is Used
Deployed by rail operators, civil defence authorities and emergency services across the region.
Main-Line Railways
Locomotive and freight wagon recovery on standard-gauge main lines — designed for high axle loads.
Metro & Underground
Compact rerailing frames for urban metro systems — deployable in tunnel sections and underground stations.
Tram & LRT
Light rerailing systems for tram and light rail transit — rapid deployment to restore urban services.
Industrial Railways
Recovery equipment for port, refinery and industrial rail networks where standard recovery vehicles cannot access.
Operational Guide
How Lukas Re-railing Works
A standard Lukas re-railing operation for one derailed bogie follows four stages and can be completed by a two-person team without cranes or heavy recovery vehicles.
Scene Assessment & Frame Positioning
The team assesses the derailment — axle load, track gauge, rail profile — then positions re-railing frames on the rail on both sides of the derailed axle or bogie.
Track Clamp Anchoring
Track clamps bolt the re-railing frames to the rail head using a single spanner. This prevents lateral displacement of the frames under load during the lift phase. Compatible with UIC 54, UIC 60 and Vignol rail profiles.
Controlled Hydraulic Lift
The hydraulic power unit (700 bar) simultaneously pressurises both frames via hose connections. The frames raise the derailed bogie vertically with up to 300 mm of lift stroke. Safety locks engage at each stroke position.
Guided Return to Rail
The inclined ramp profile of the re-railing frame guides the wheel flange laterally back onto the rail head as the bogie descends. Once seated, hydraulic pressure is released and frames are removed. Track can reopen immediately.
Frame vs Track Jack — When to Use Each
| Scenario | Re-railing Frame | Hydraulic Track Jack |
|---|---|---|
| Wheel is beside the rail | ✓ Primary tool — guides wheel back | Not suitable alone |
| Vehicle chassis needs lifting clear | Used in tandem | ✓ Primary tool — direct vertical lift |
| Tunnel / underground section | ✓ Compact profile fits | ✓ Low-profile nose fits |
| Heavy locomotive (30+ T axle) | ✓ Heavy series with sync | ✓ 75 T capacity jacks |
Frequently Asked Questions
Re-railing Equipment — FAQ
What is the difference between light and heavy re-railing frames?
The light frame series handles trams, light rail, metro cars and passenger coaches with axle loads up to 30 T. The heavy series is rated for mainline locomotives and freight wagons above 30 T, and includes an adjustable gauge adapter plus optional hydraulic synchronisation for controlled simultaneous lifting.
Do I need a crane to re-rail a train with Lukas equipment?
No — the Lukas re-railing system is specifically designed for crane-free recovery. The hydraulic frames, track jacks and power unit allow a small team to lift and guide a derailed bogie back onto the rail without heavy lifting equipment on site, which is critical when cranes cannot access the incident location.
Which track gauges are compatible with Lukas re-railing frames?
The standard configuration is 1435 mm (standard gauge). Frames can be adapted for metre gauge, broad gauge and other track widths through the adjustable gauge adapter system supplied with the heavy series. Specify your track gauge when requesting a quotation.
Can the re-railing frames be used inside tunnel sections?
Yes. The compact profile of Lukas re-railing frames allows deployment in tunnel cross-sections and underground metro stations where overhead clearance prevents crane access. In confined underground spaces, specify the electric or battery-powered power unit rather than petrol, for ventilation reasons.
What power source does the hydraulic power unit use?
The Lukas re-railing power unit is available with a petrol engine, 230 V mains electric motor, or battery pack. All options deliver up to 700 bar output and can simultaneously drive up to 4 hydraulic circuits for synchronised lifting of both frames at once.
How many personnel are needed for a re-railing operation?
The light frame system requires a minimum of two people. The heavy series with synchronised lifting typically uses three to four personnel. No crane operators or specialist heavy vehicle operators are needed — the system is designed for railway emergency teams and civil defence responders.
Do you supply Lukas re-railing equipment to Egypt and Africa?
Yes. Hydraulic Rescue Tools is an authorised Lukas dealer supplying re-railing frames, track jacks, power units and complete kits to railway operators, civil defence authorities and emergency services in Egypt, the Middle East and across Africa. Contact us for specifications and pricing.
