LUKAS Hydraulic Rescue Tools — Cutters, Spreaders & Combi Tools
Eleven LUKAS E4 battery rescue tools — the jaws of life carried by fire services worldwide. Built by LUKAS in Erlangen, Germany, certified to EN 13204 Class K, insulated to 1,000 V for electric-vehicle rescue. Compare the full range side by side below, then ask us for a price and lead time.
Lukas E4 Series
The Complete Lukas Range
3 cutters · 5 spreaders · 3 combi tools · 3 rams · rerailing systems. Every E4 tool features Captium IoT, 1,000 V EV insulation and IP 58 protection.
Cutters

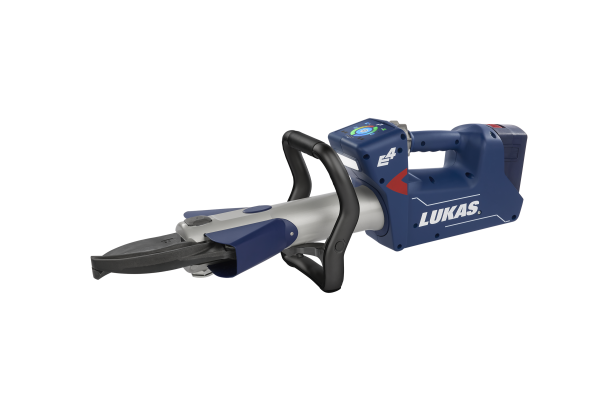

E4 Cutter
S 378 E4
Compact rescue cutter with 760 kN cutting force, 202 mm blade opening. 17.8 kg. Ideal for confined-space extrication.

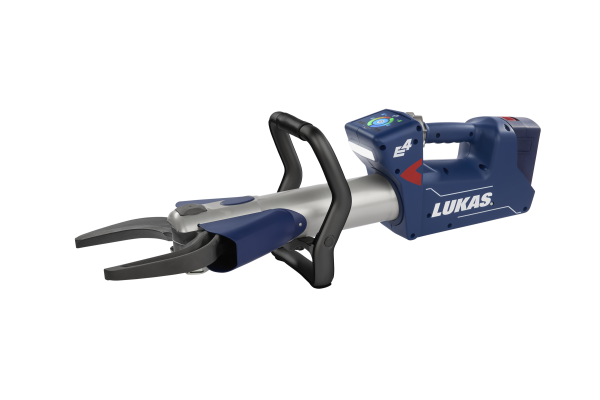

E4 Cutter
S 789 E4
High-force cutter with 1,101 kN, Captium IoT data logging, 1,000 V EV insulation. The intelligent rescue cutter.

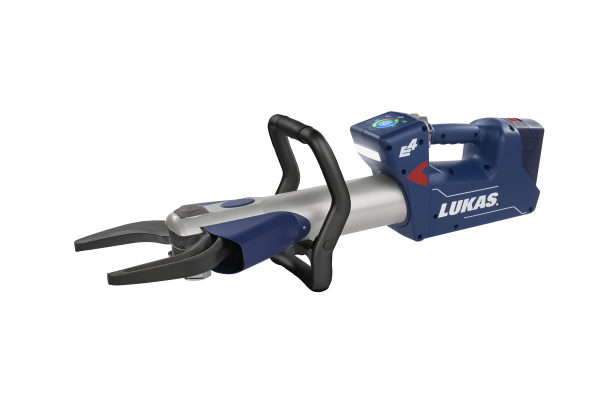

E4 Cutter
S 799 E4
Lukas' most powerful E4 cutter. 1,000 V EV-safe, IP 58 rated, EN K class — for the toughest extrication scenarios.

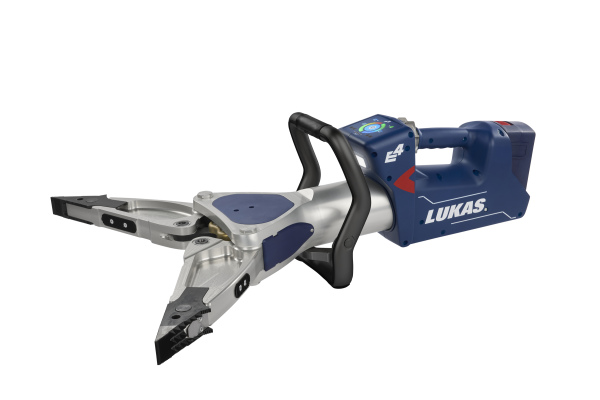

E4 Spreader
SP 775 E4
698 kN spreading force, 800 mm reach. The E4 spreader for rapid door and panel removal on modern vehicles.

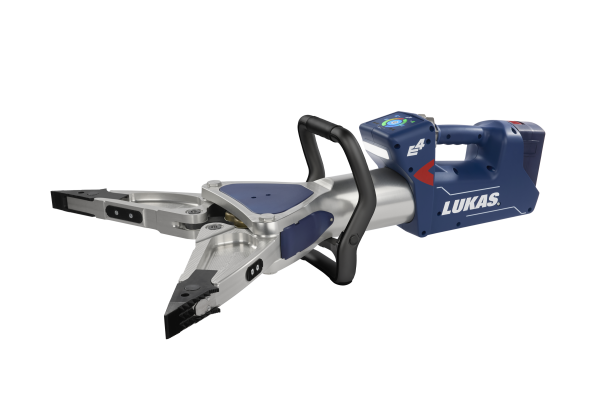

E4 Spreader
SP 777 E4
600 kN spread, 813 mm reach, 122 kN squeeze. Versatile spreader combining strong outreach with pulling capability.

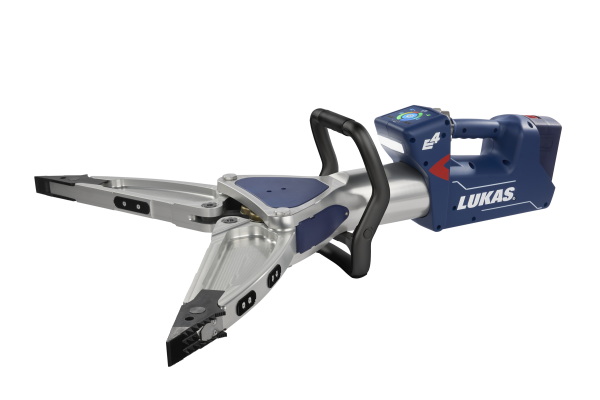

E4 Spreader
SP 778 E4
500 kN spreading force, exceptional 1,018 mm reach. Designed for large-panel displacement and roof removal.
Spreaders

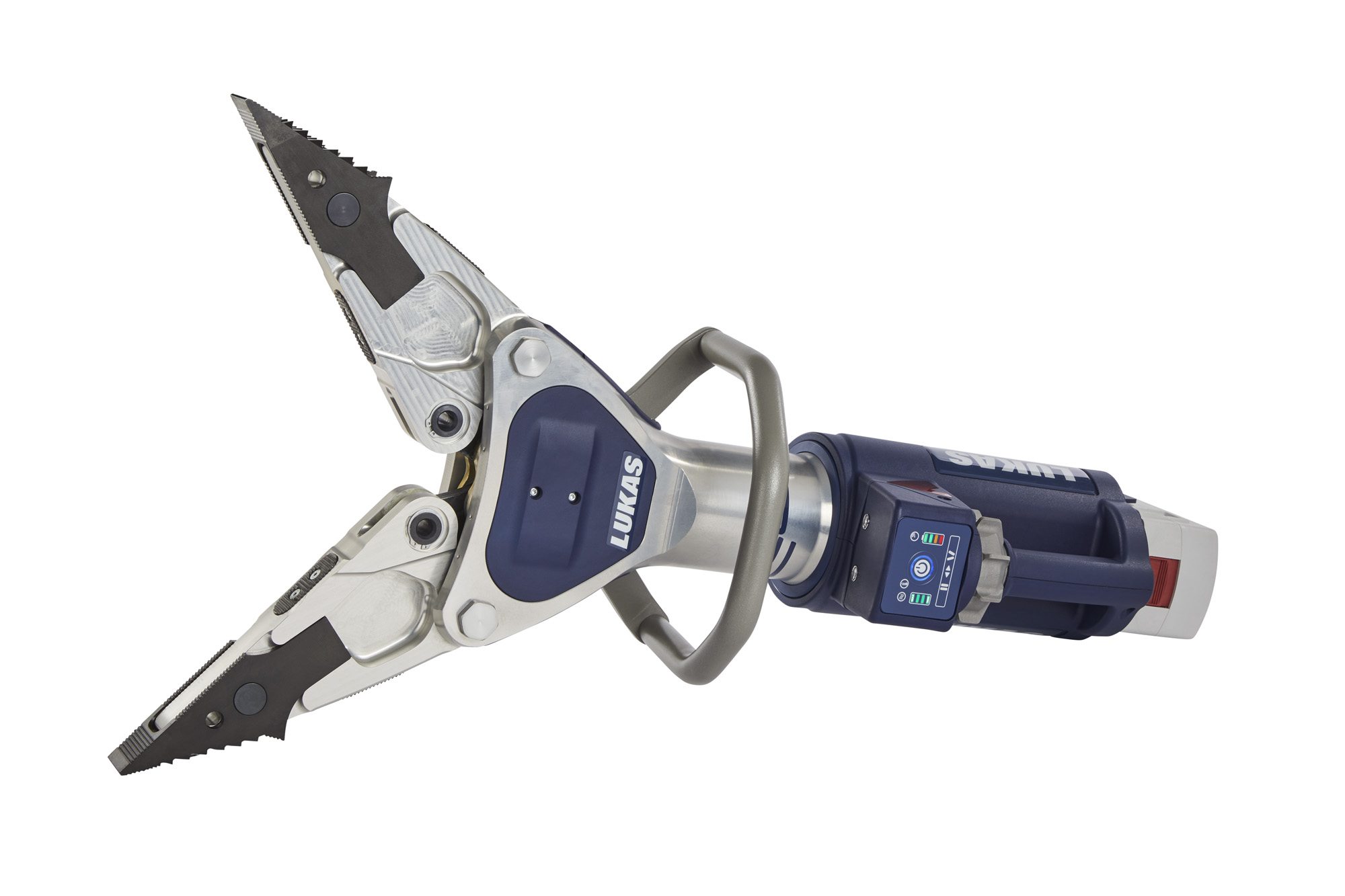

E4 Spreader
SP 333 E4
Compact E4 spreader with the narrowest profile in the range. Ideal for confined-space vehicle extrication where access is restricted.

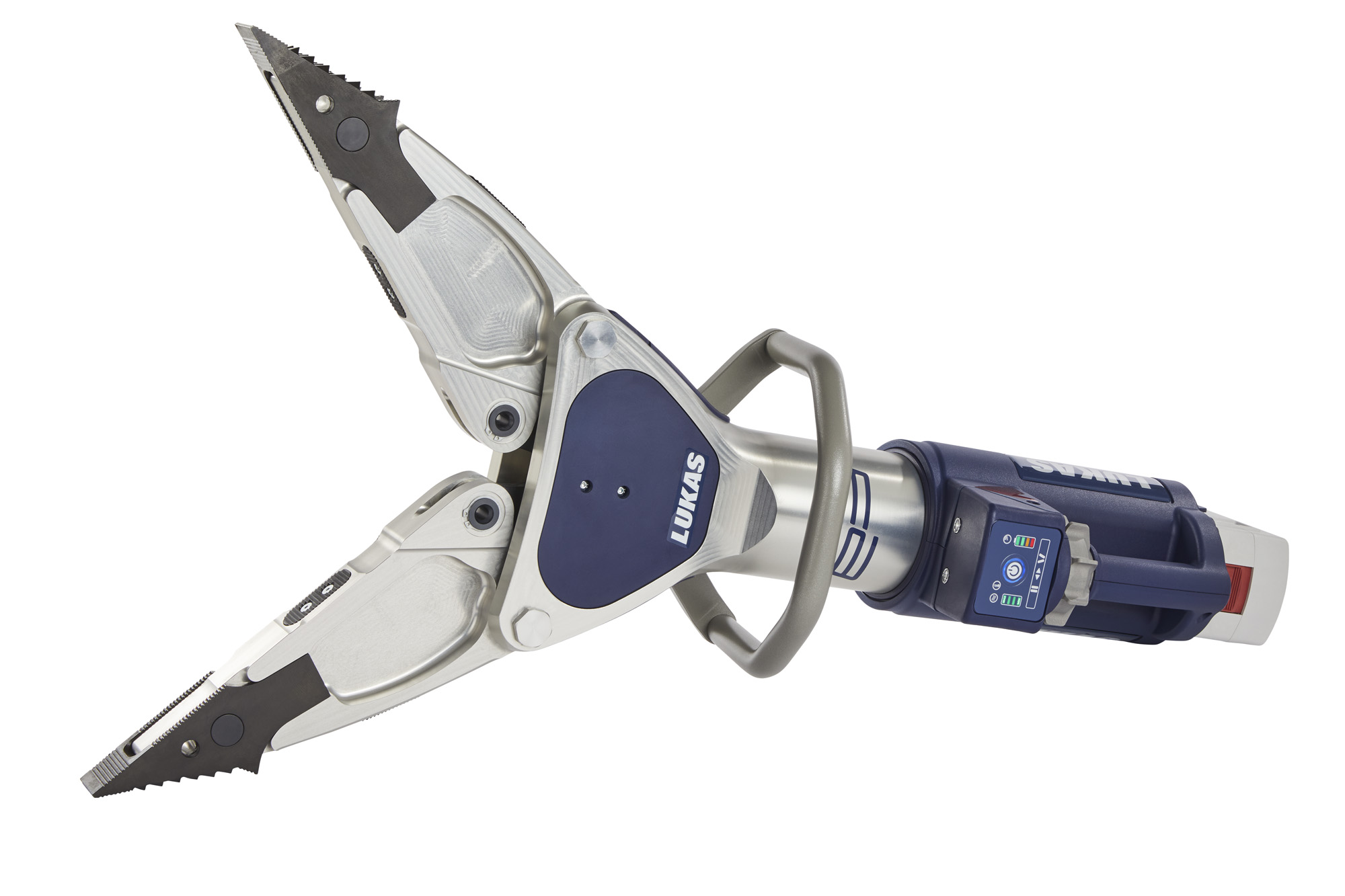

E4 Spreader
SP 555 E4
Mid-range E4 spreader balancing force and reach for general extrication operations. 1,000 V EV-safe, IP 58 rated.
Combi Tools

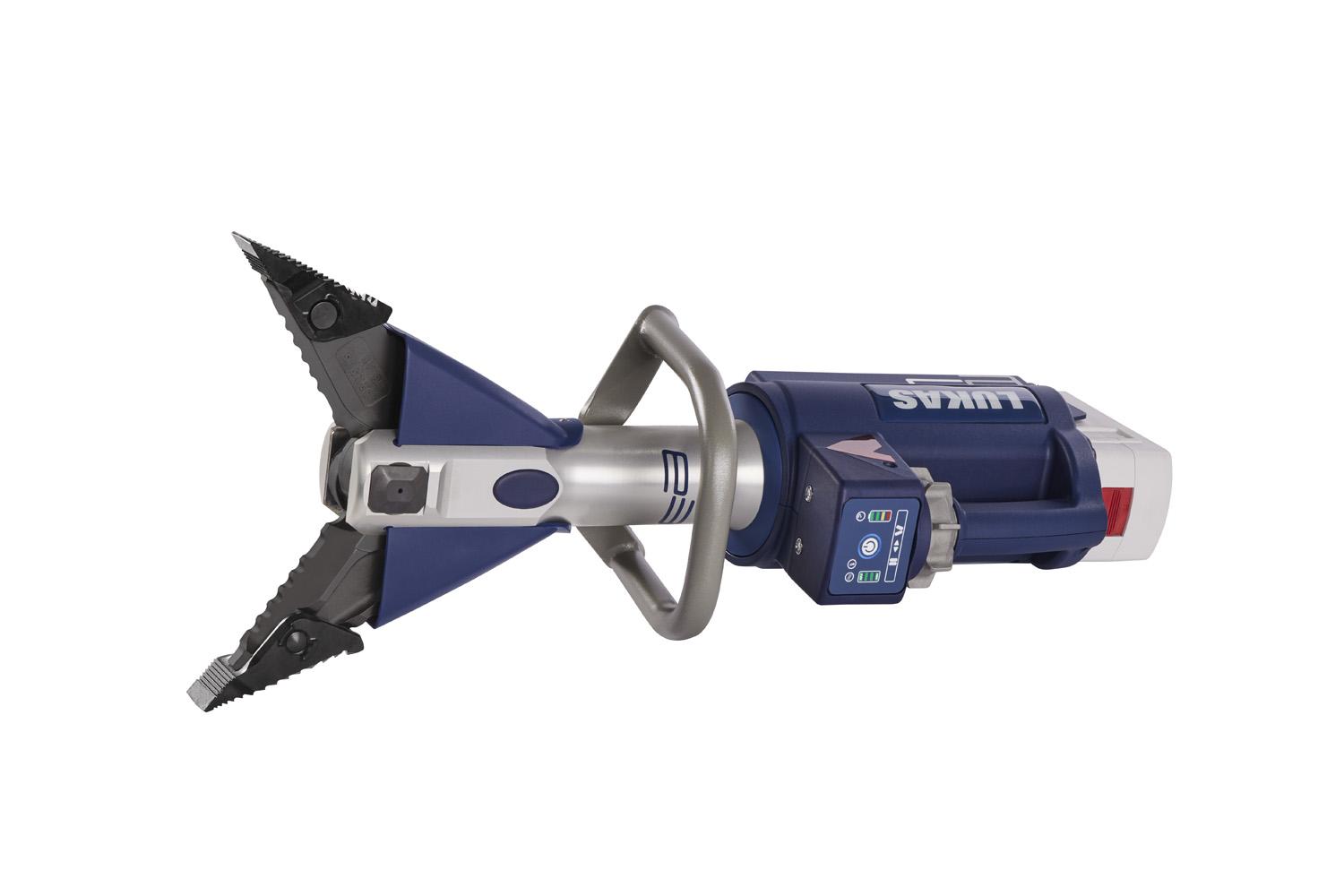

E4 Combi Tool
SC 258 E4
The lightest E4 combi — cuts and spreads in one ultra-compact unit. Built for rescuers who need maximum versatility at minimum weight.

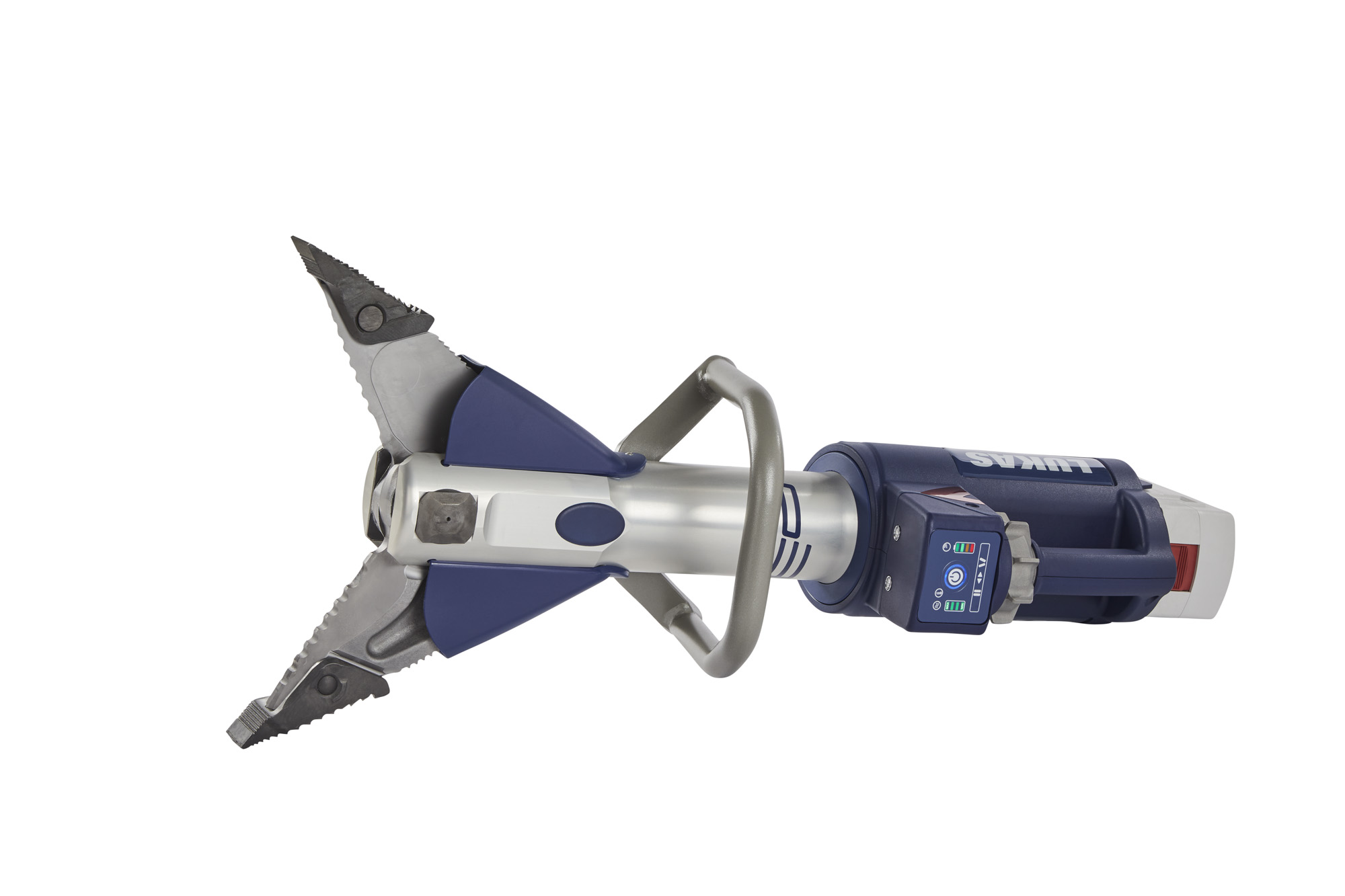

E4 Combi Tool
SC 358 E4
Mid-size E4 combi tool — balanced cutting force and spreading capability in a single Captium-enabled unit.

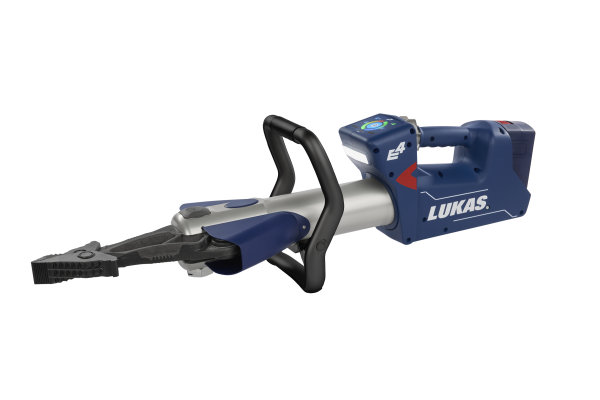

E4 Combi Tool
SC 758 E4
Cuts and spreads in one tool — 475 mm spread, 24.2 kg. A single E4 combi tool replaces two separate units.
Rams & Cylinders
Hydraulic Ram
R 320 e³ CONNECT
Mini telescopic rescue ram for confined-space operations. Compact stroke, lightweight, compatible with all Lukas e³ CONNECT power units.
Hydraulic Ram
R 521 e³ CONNECT
Standard telescopic rescue cylinder with generous stroke for general-purpose vehicle and structural rescue operations.

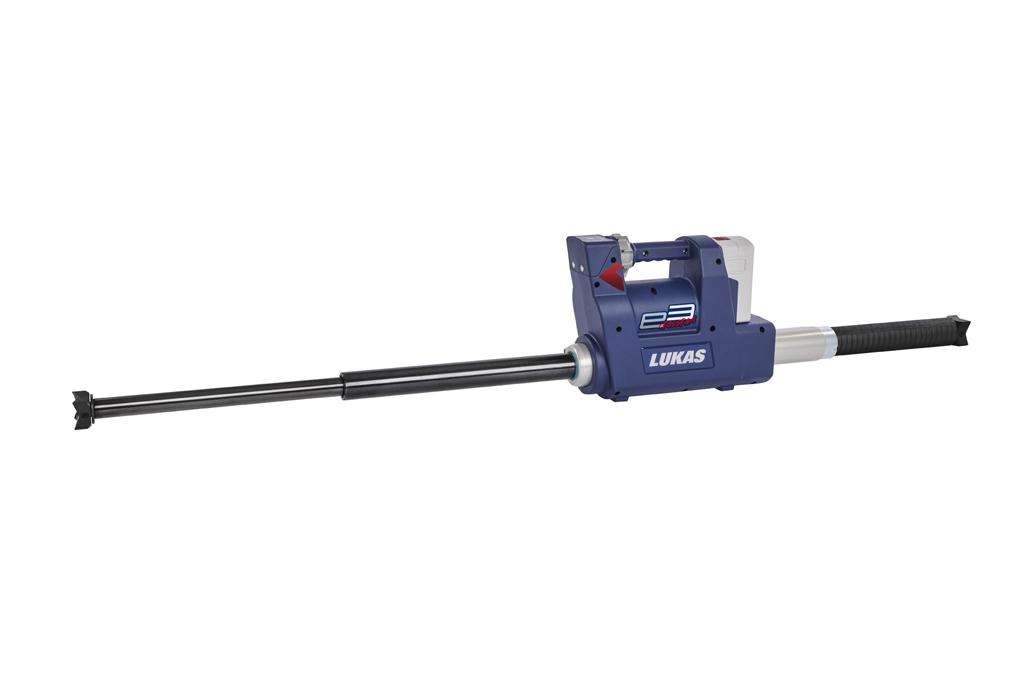

Hydraulic Ram
CR 522 e³ CrossRam
Long-stroke telescopic CrossRam for wide-span applications — ideal for wide-body vehicle extrication and structural displacement.

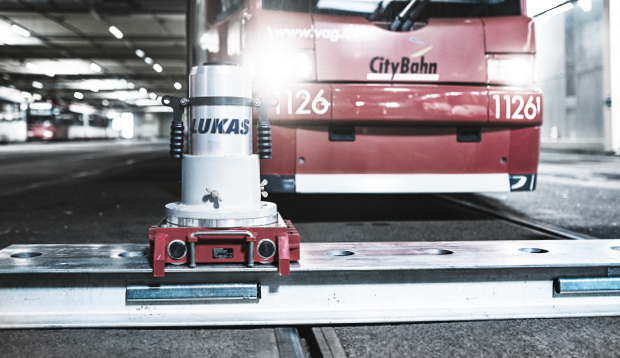

Rerailing Equipment
Rerailing Equipment
Rerailing Systems
Lukas rerailing jacks, track clamps, side support beams and telescopic struts for train and tram recovery operations.
Specifications
Which LUKAS Tool Do You Need?
Every E4 cutter, spreader and combi tool side by side. Weights are without hose; all tools are EN 13204:2015 Class K, IP 58, 720 bar and insulated to 1,000 V DC/AC.
| Model | Type | Max. force | Opening / reach | Weight |
|---|---|---|---|---|
| Cutters | ||||
| LUKAS S 378 E4 | Cutter | 760 kN cutting | 202 mm blade opening | 17.8 kg |
| LUKAS S 789 E4 | Cutter | 1,101 kN cutting | 240 mm blade opening | 22.8 kg |
| LUKAS S 799 E4 | Cutter | 1,150 kN cutting | 255 mm blade opening | 26.3 kg |
| Spreaders | ||||
| LUKAS SP 333 E4 | Spreader | 836 kN spreading | 600 mm tip-to-tip | 16.6 kg |
| LUKAS SP 555 E4 | Spreader | 658 kN spreading | 730 mm tip-to-tip | 19.3 kg |
| LUKAS SP 775 E4 | Spreader | 698 kN spreading | 800 mm tip-to-tip | 20.9 kg |
| LUKAS SP 777 E4 | Spreader | 600 kN spreading | 813 mm tip-to-tip | 22.0 kg |
| LUKAS SP 778 E4 | Spreader | 500 kN spreading | 1,018 mm tip-to-tip | 24.1 kg |
| Combi tools | ||||
| LUKAS SC 258 E4 | Combi tool | 37 kN pulling | 321 mm spread | 15.1 kg |
| LUKAS SC 358 E4 | Combi tool | 45 kN pulling | 368 mm spread | 18.6 kg |
| LUKAS SC 758 E4 | Combi tool | ~750 kN cutting | 475 mm spread | 24.2 kg |
Rams and rerailing equipment are listed on the rams page and the rerailing page. Need help choosing? Send us the vehicle types and the standard you work to — we will recommend a set.
Questions
LUKAS Rescue Tools — Common Questions
What is the difference between a LUKAS cutter, spreader and combi tool?
A cutter severs structure — posts, roof rails, pedals — with forces from 760 kN on the S 378 E4 to 1,150 kN on the S 799 E4. A spreader forces structure apart and pulls, reaching 600 mm tip-to-tip on the SP 333 E4 and 1,018 mm on the long-reach SP 778 E4. A combi tool does both in one body and is the usual choice for a first-response vehicle with limited stowage, at 15.1–24.2 kg.
Which LUKAS cutter is the most powerful?
The S 799 E4, at 1,150 kN maximum cutting force with a 255 mm blade opening, weighing 26.3 kg without hose. The S 789 E4 is close behind at 1,101 kN and 22.8 kg, which most teams find the better balance of force and weight.
Are LUKAS rescue tools made in Germany?
Yes. LUKAS Hydraulik GmbH designs and manufactures in Erlangen, Germany, and has done since 1948. Every tool we supply is genuine German-built LUKAS equipment with full manufacturer warranty and documentation — we are an authorised distributor, not a reseller of parallel imports.
What does E4 mean on a LUKAS tool?
E4 is the fourth generation of LUKAS battery-powered rescue tools. The tool carries its own battery and pump, so there is no hose, no power unit and no set-up time. E4 also brings Captium™ IoT usage logging, 1,000 V electric-vehicle insulation and IP 58 protection.
Can LUKAS E4 tools be used on electric and hybrid vehicles?
Yes. Every E4 tool is insulated to 1,000 V DC/AC, which covers the traction-battery voltages found in current electric and hybrid vehicles. The tools are also cordless, so there is no trailing hose across a scene that may still be energised.
How much does a LUKAS rescue tool cost, and what is the lead time?
Price depends on the model, the set configuration and the destination, so we quote rather than publish a list. Send us the models or the EN 13204 class you need and you will have a written quotation, including freight and lead time, within 24 hours.
Do you supply outside Egypt and the UAE?
Yes. We ship LUKAS E4 equipment to fire services, civil defence, industrial brigades and rescue contractors across Africa, the Middle East and Asia, with export documentation handled at our end. Tell us the destination and we will confirm freight and lead time with the quotation.
Technology
Why the Lukas E4 Series?
Four technologies set the E4 apart from previous-generation hydraulic rescue tools.
1,000 V EV Insulation
Fully insulated tool body and blades rated to 1,000 V DC/AC — safe for use on electric vehicles and hybrid platforms.
Captium IoT
Embedded Lukas Captium module logs operating cycles, maintenance intervals and force data in real time.
IP 58 Protection
Dust-tight and protected against continuous immersion — performs in rain, flood and demanding environments.
EN 13204 K Class
Certified to EN 13204 Class K — the highest European standard for hydraulic rescue tools.
Modular Design
Compatible with all Lukas E4 power units and battery systems. Swap tools without changing your power source.
Worldwide Supply & Support
Authorised distributor with stock, spare parts and technical support for civil defence, fire services and rescue teams across Africa, the Middle East and Asia.
Get a Price and Lead Time Within 24 Hours
Send us the models or the EN 13204 class you need. You will have a written quotation with freight and lead time, wherever you are.
